General Description
The DS3231 is a low-cost, extremely accurate I2C
real-time clock (RTC) with an integrated temperature-
compensated crystal oscillator (TCXO) and crystal.
The device incorporates a battery input, and maintains
accurate timekeeping when main power to the device
is interrupted. The integration of the crystal resonator
enhances the long-term accuracy of the device as well
as reduces the piece-part count in a manufacturing line.
The DS3231 is available in commercial and industrial
temperature ranges, and is offered in a 16-pin, 300-mil
SO package.
The RTC maintains seconds, minutes, hours, day, date,
month, and year information. The date at the end of the
month is automatically adjusted for months with fewer
than 31 days, including corrections for leap year. The
clock operates in either the 24-hour or 12-hour format
with an AM/PM indicator. Two programmable time-of-day
alarms and a programmable square-wave output are

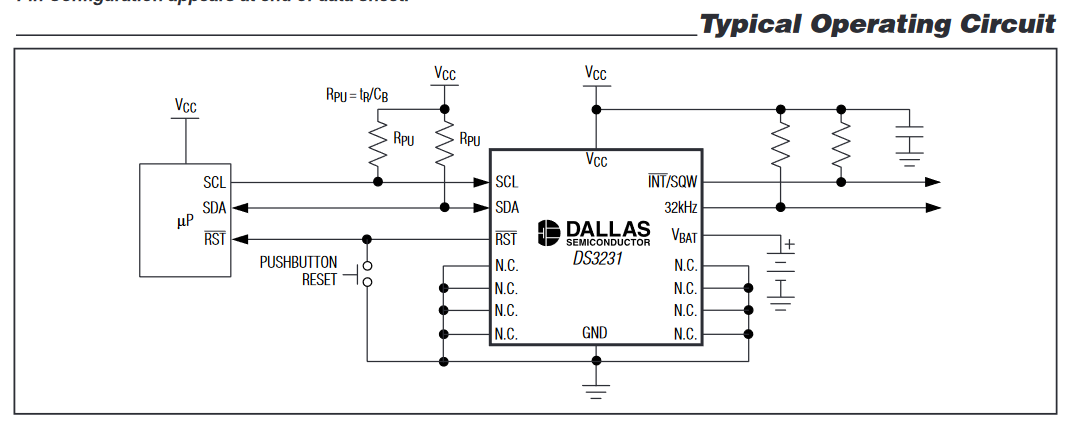

provided. Address and data are transferred serially
through an I2C bidirectional bus.
A precision temperature-compensated voltage reference
and comparator circuit monitors the status of VCC to
detect power failures, to provide a reset output, and to
automatically switch to the backup supply when necessary.
Additionally, the RST pin is monitored as a pushbutton
input for generating a μP reset.
Applications
19-5170; Rev 10; 3/15
Underwriters Laboratories is a registered certification mark of
Underwriters Laboratories Inc.

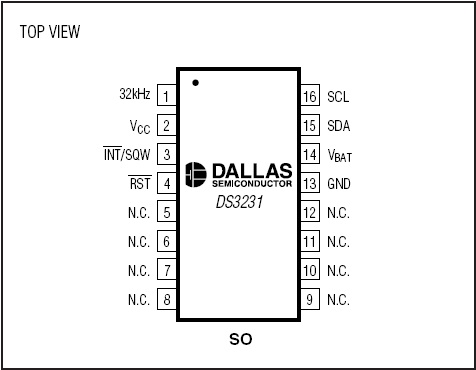

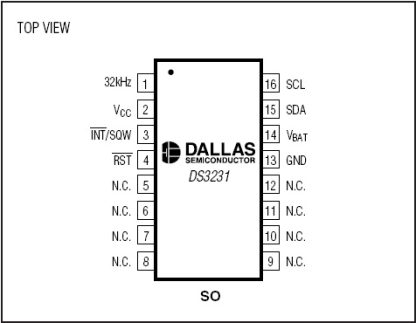

Ordering Information and Pin Configuration appear at end of data
sheet.
● Servers
● Telematics
● Utility Power Meters
● GPS
